SOLDER PREFORM
(Micro Reels)

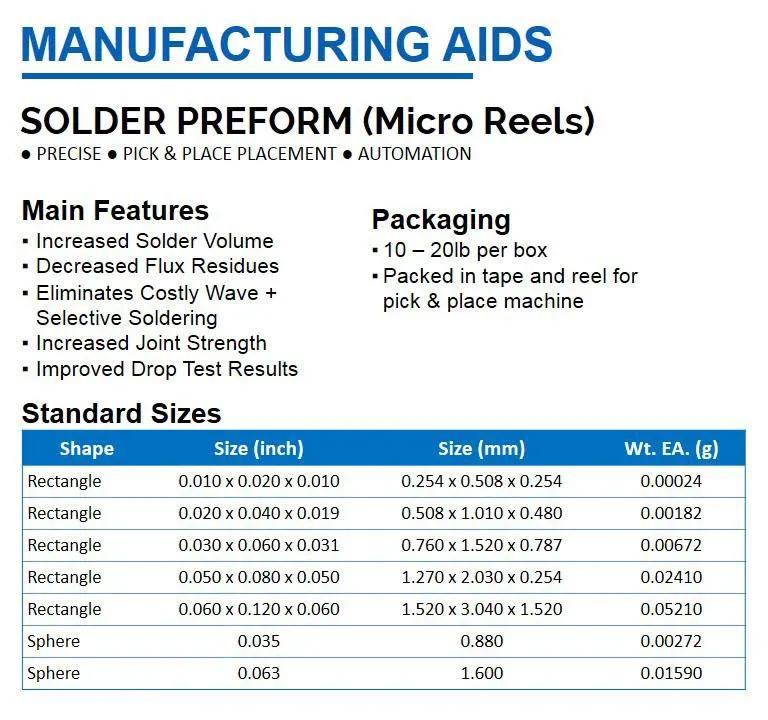

FEATURES
SHAPE
SIZE (In)
SIZE (mm)
WT. EA. (G)
Increased solder volume
Decreased flux residues
Eliminates costly wave + selective soldering
Increased joint strength
Improved drop test results
Rectangle
Rectangle
Rectangle
Rectangle
Rectangle
Sphere
Sphere
0.010 x 0.020 x 0.010
0.020 x 0.040 x 0.019
0.030 x 0.060 x 0.031
0.050 x 0.080 x 0.050
0.060 x 0.120 x 0.060
0.035
0.063
0.254 x 0.508 x 0.254
0.508 x 1.010 x 0.480
0.760 x 1.520 x 0.787
1.270 x 2.030 x 0.254
1.520 x 3.040 x 1.520
0.880
1.600
0.00024
0.00182
0.00672
0.02410
0.05210
0.00272
0.01590

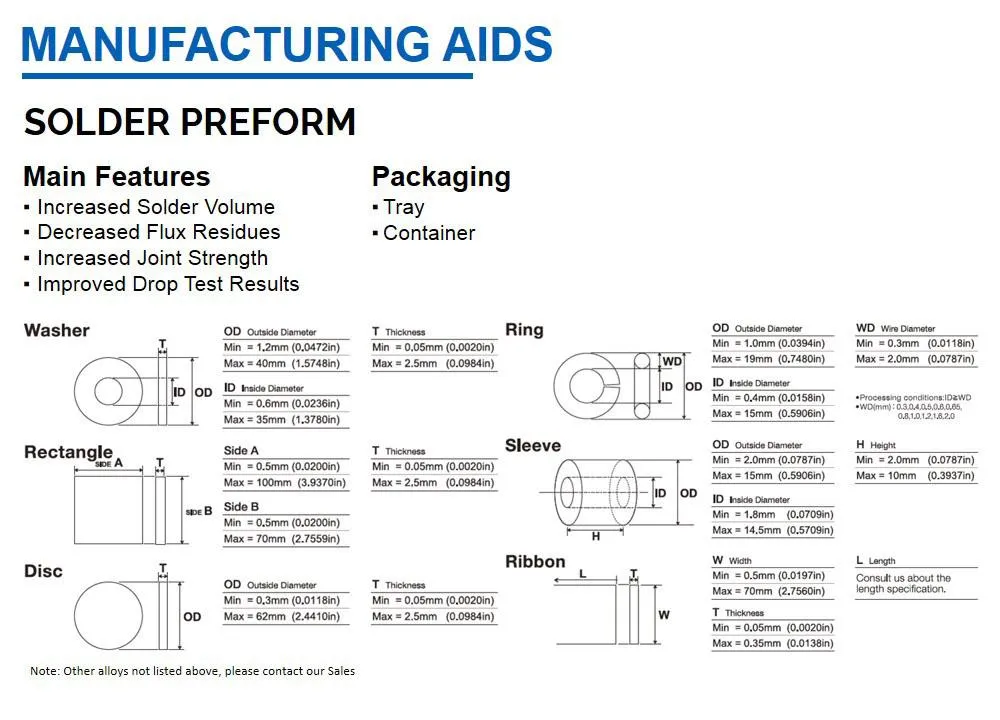

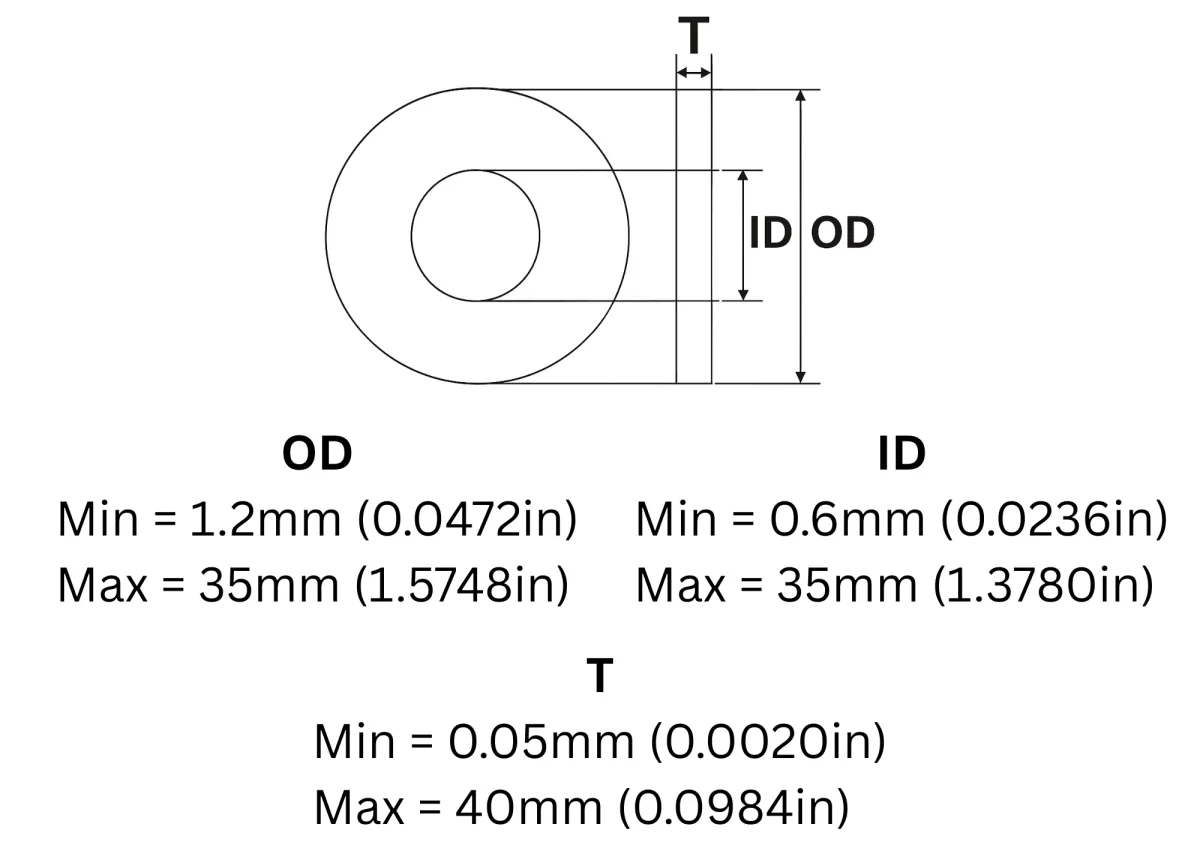

WASHER

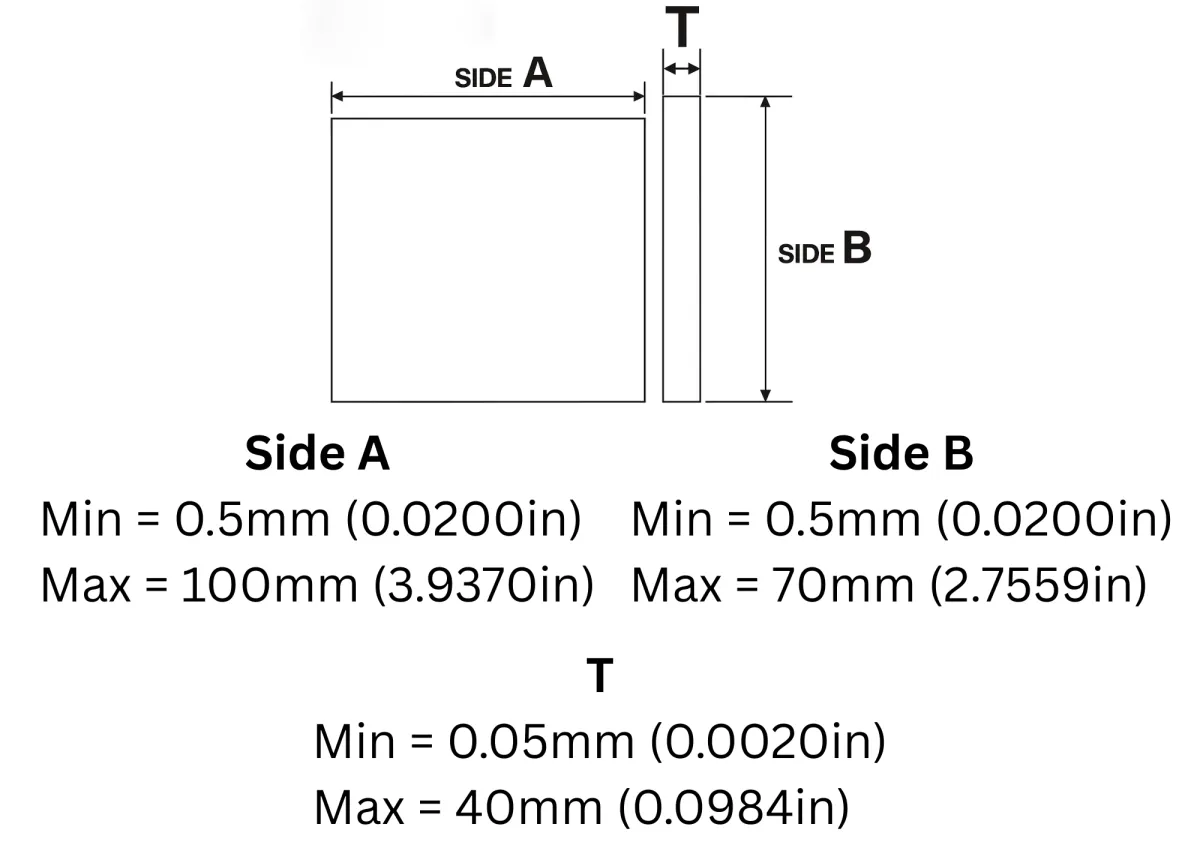

RECTANGLE

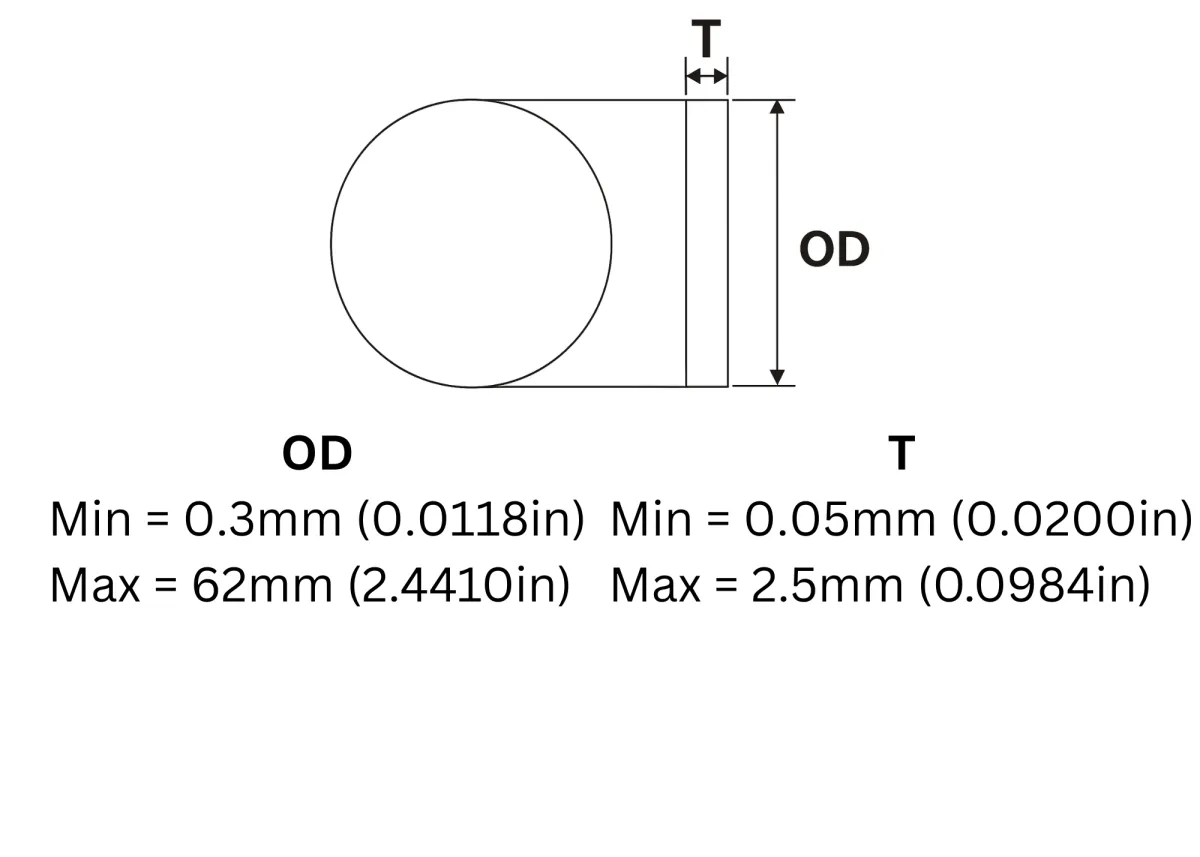

DISC

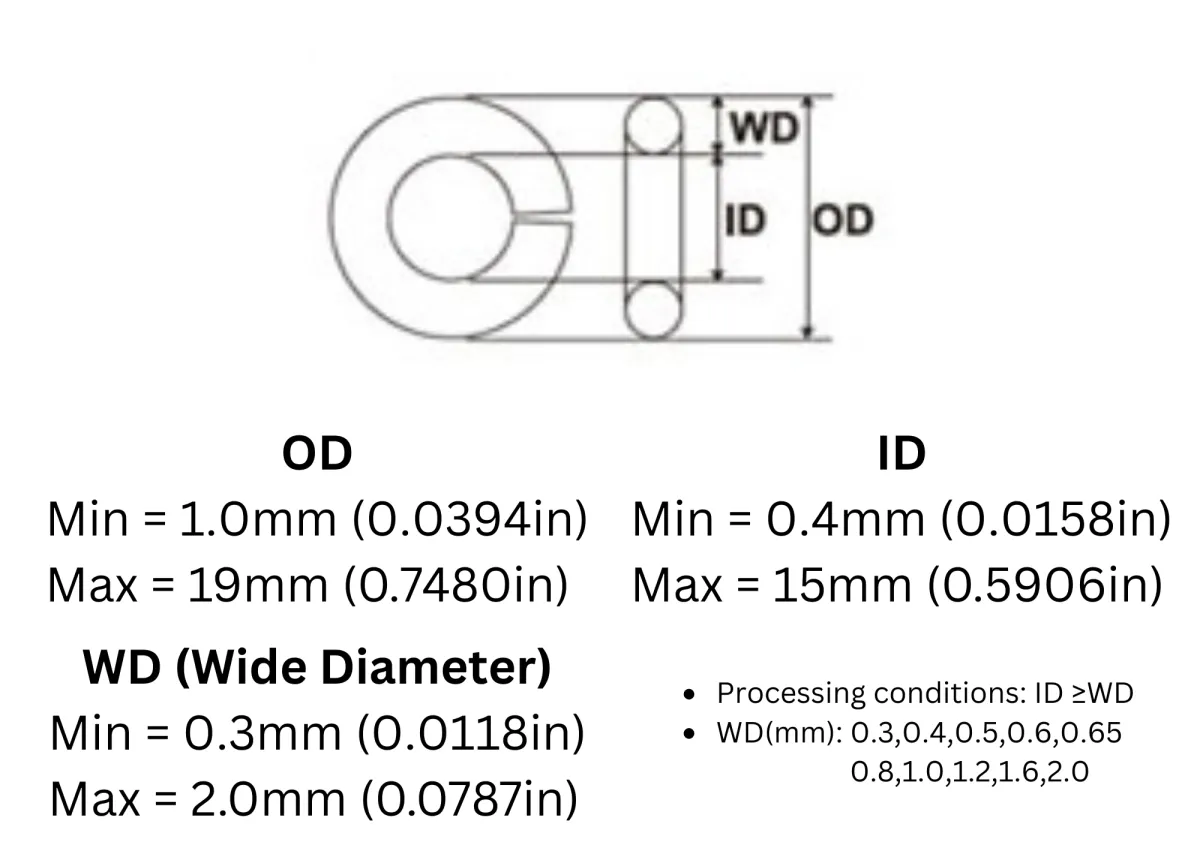

RING

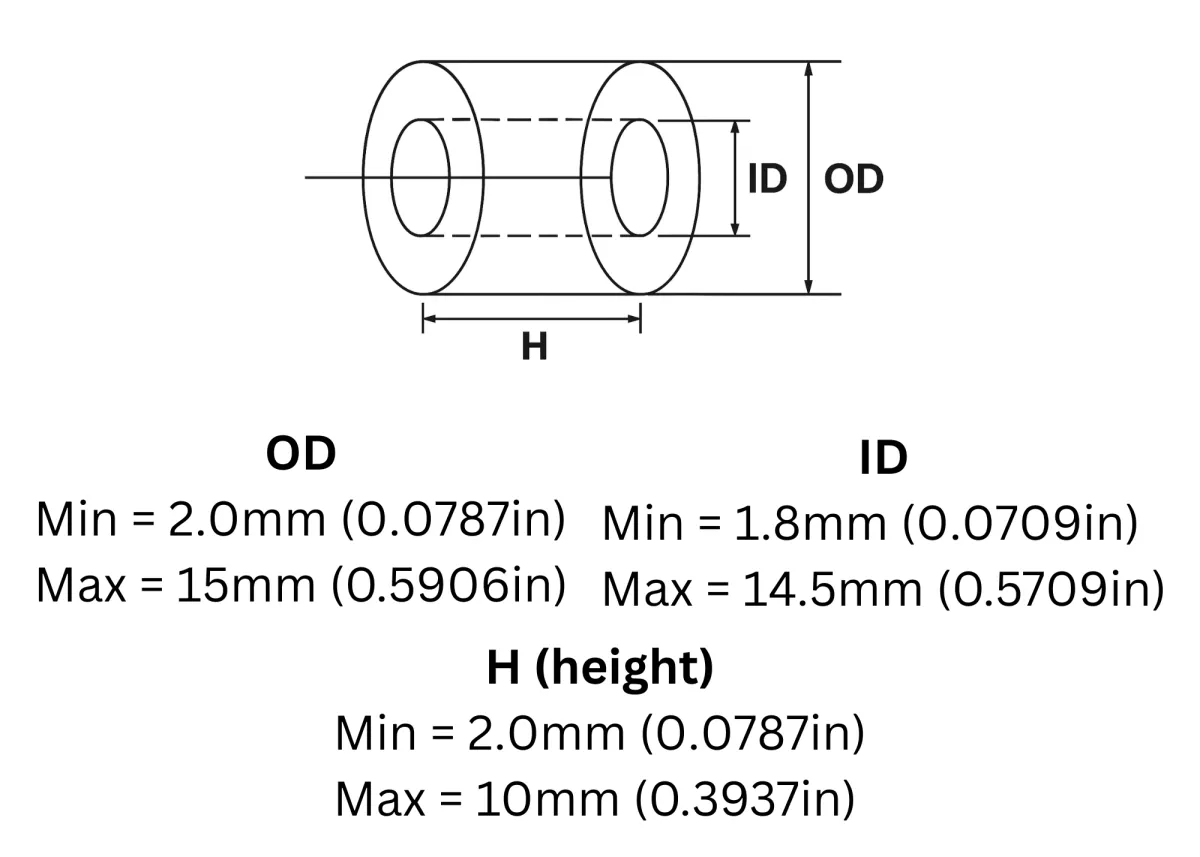

SLEEVE

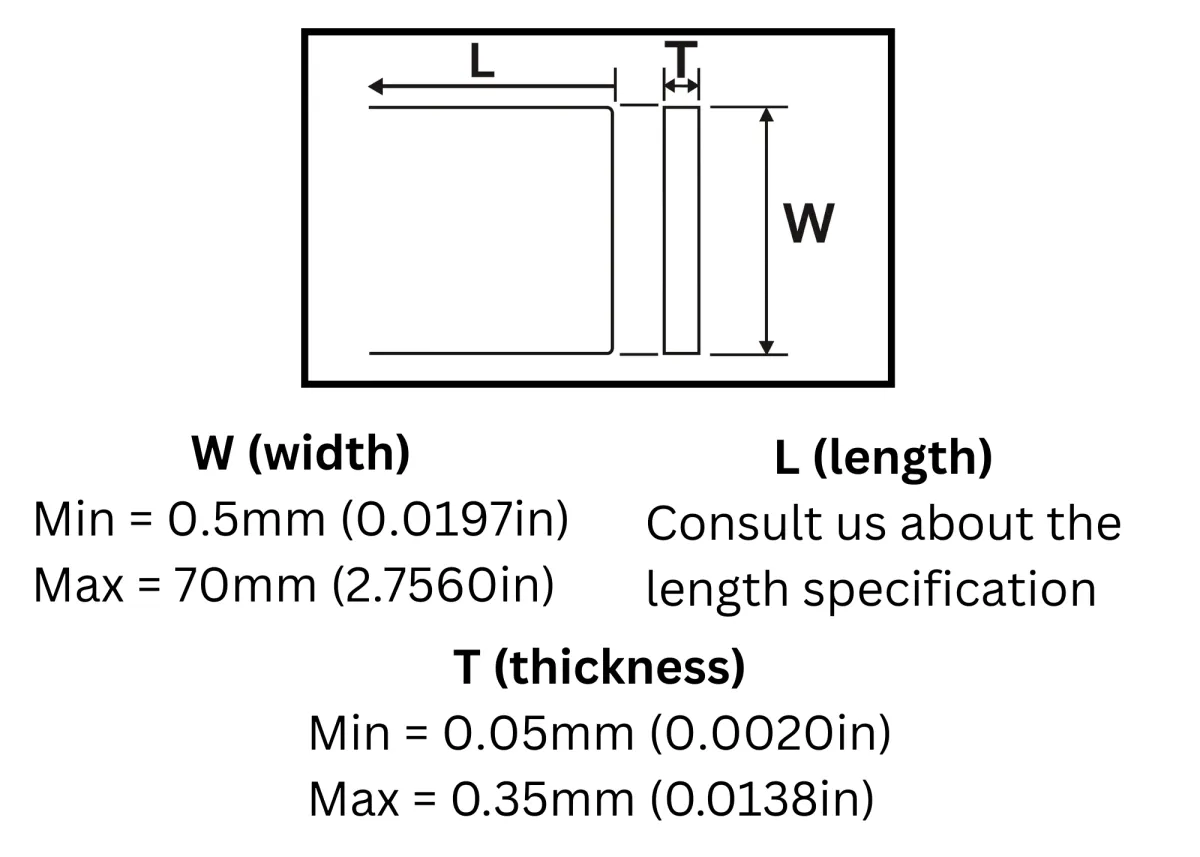

RIBBON

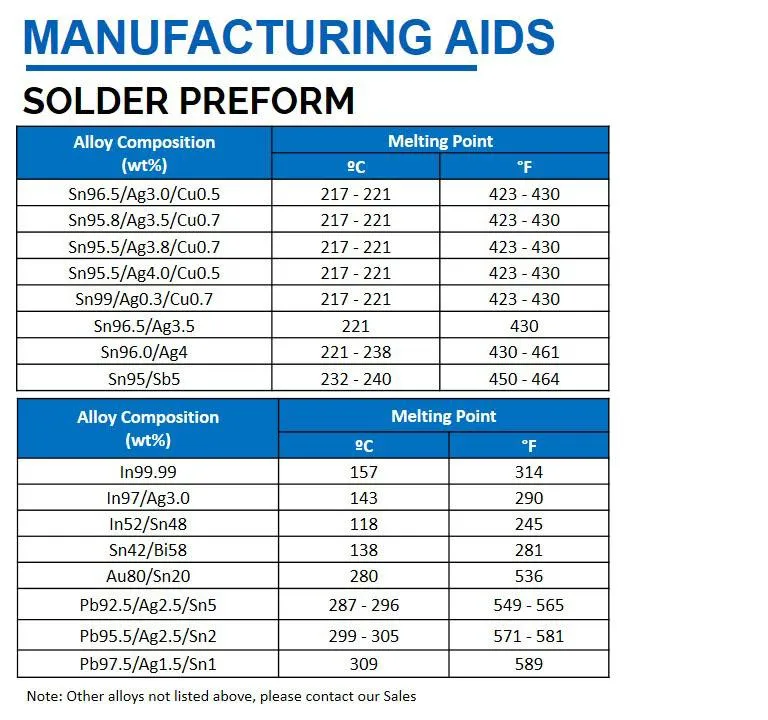

ALLOY COMPOSITION
(wt%)
MELTING POINT
ºC
MELTING POINT
ºF
Sn96.5/Ag3.0/Cu0.5
Sn95.8/Ag3.5/Cu0.7
Sn95.5/Ag3.8/Cu0.7
Sn95.5/Ag4.0/Cu0.5
Sn99/Ag0.3/Cu0.7
Sn96.5/Ag3.5
Sn96.0/Ag4
Sn95/Sb5
In99.99
In97/Ag3.0
In52/Sn48
Sn42/Bi58
Au80/Sn20
Pb92.5/Ag2.5/Sn5
Pb95.5/Ag2.5/Sn2
Pb97.5/Ag1.5/Sn1
217 - 221
217 - 221
217 - 221
217 - 221
217 - 221
221
221 - 238
232 - 240
157
143
118
138
280
287 - 296
299 - 305
309
423 - 430
423 - 430
423 - 430
423 - 430
423 - 430
430
430 - 461
450 - 464
314
290
245
281
536
549 - 565
571 - 581
589
