PASTE FLUX
NO CLEAN
TYPE
FEATURES
J-STD-004B
RoHS Compliant
PF600
Designed for rework of surface mount assemblies
Maybe dispensed or brushed on.
Residue are non-corrosive and non-conductive.
Halide <0.05 based on quantative halide test.
REL0
Yes
PF6001
Designed for touch up and rework applications.
PF601 paste flux is light in color with non-conductive residues.
Halide <0.05 based on quantative halide test.
REL0
Yes
PF608
Designed for lead free repair work.
Best seller
Halide <0.05 based on quantative halide test.
REL0
Yes

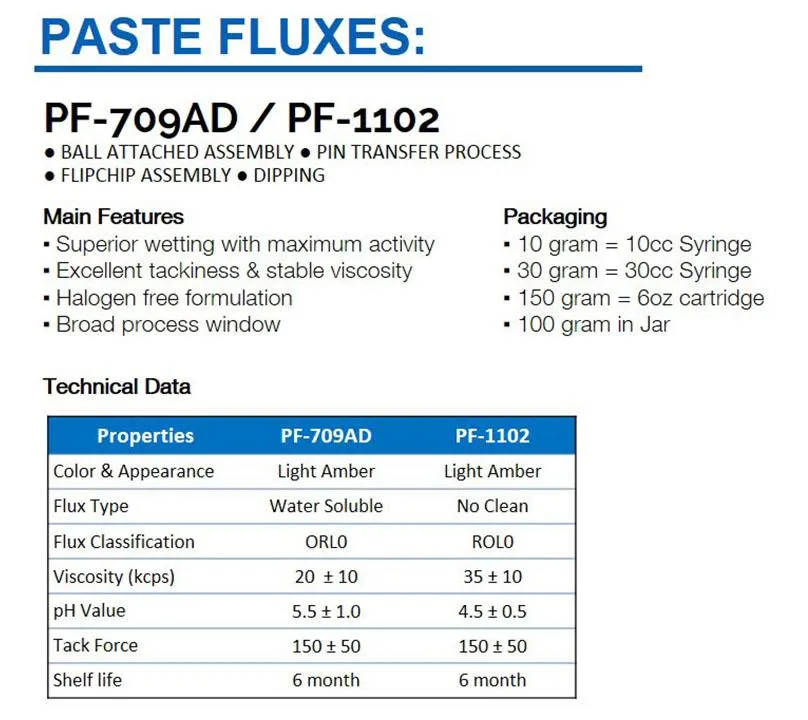

PF1102
Supeior wetting with maximum activity
Excellent tackiness & stable viscosity
Halogen free formulation
Broad process window
ROL0
Yes
Delta X Series
Extremely low residue
Compatible with underfills
Excellent tackiness & stable viscosity
Halogen free formulation
WATER SOLUBLE
TYPE
FEATURES
J-STD-004B
RoHS COMPLIANT
PF700
Designed for rework of surface mount assemblies
Dark amber
Halide 0 (zero) based on theoritical value.
ORM0
Yes

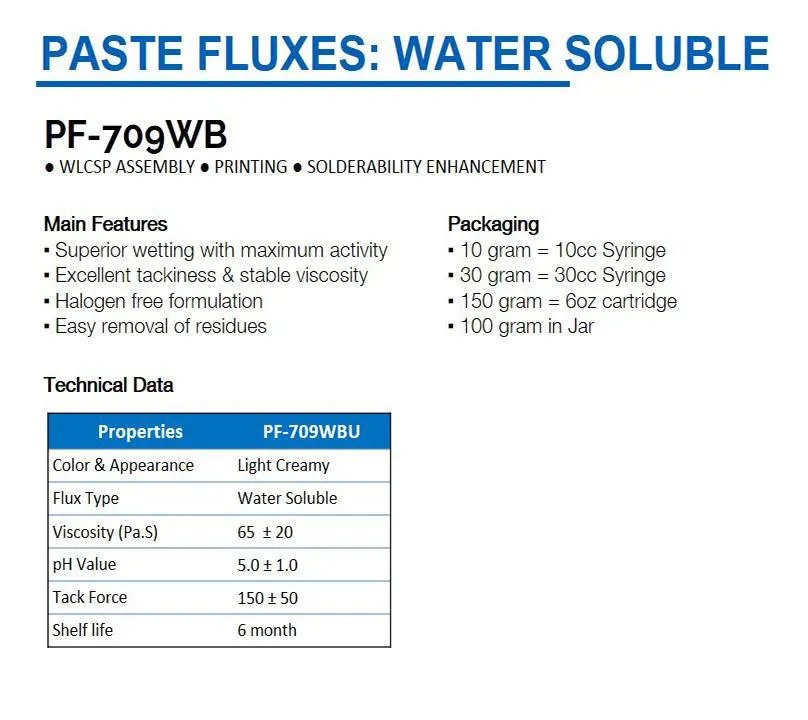

PF709WB
Supeior wetting with maximum activity
Excellent tackiness & stable viscosity
Halogen free formulation
Easy removal of residues
PF709AD
Supeior wetting with maximum activity
Excellent tackiness & stable viscosity
Halogen free formulation
Broad process window
ORL0
No

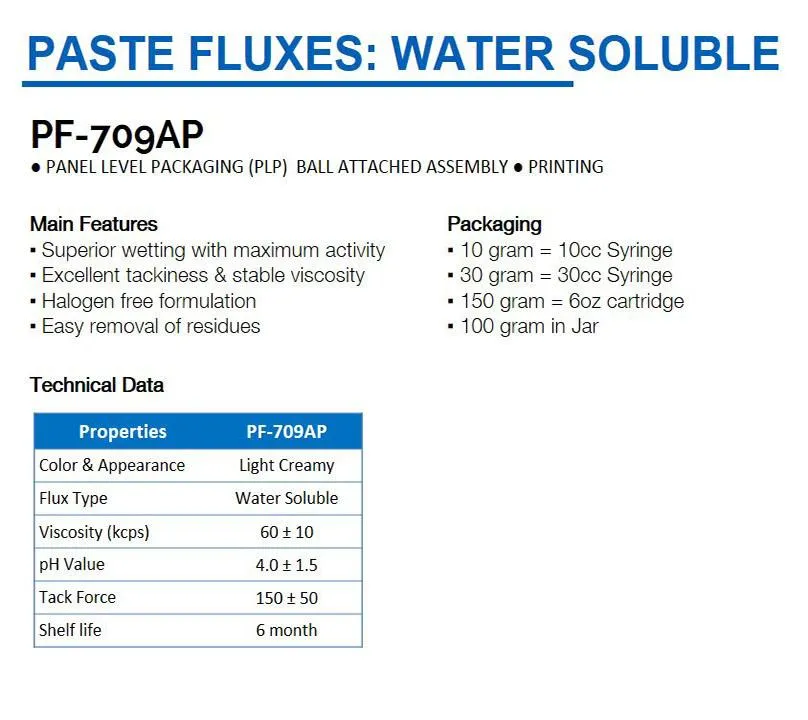

PF709AP
Supeior wetting with maximum activity
Excellent tackiness & stable viscosity
Halogen free formulation
Easy removal of residues

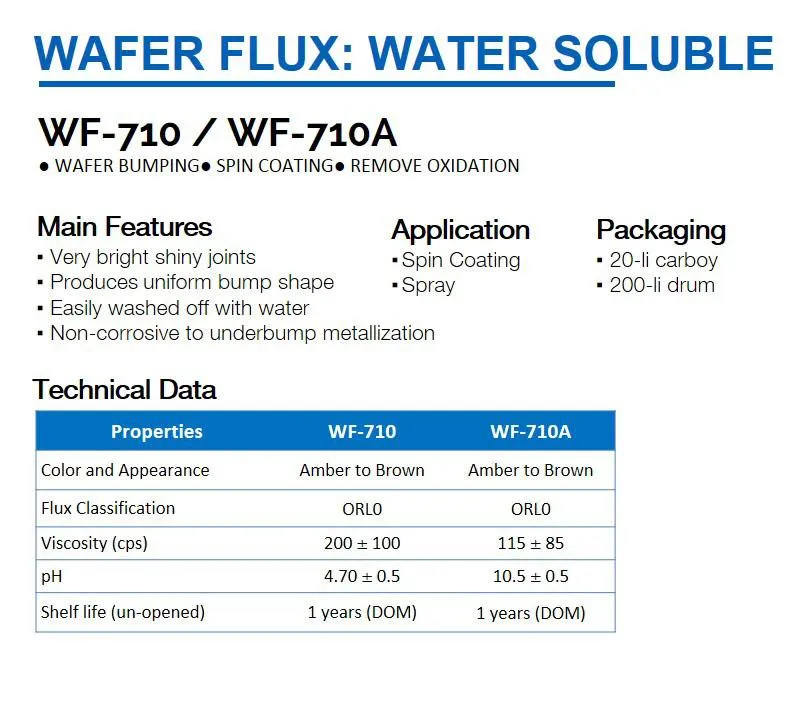

WF-710/ WF-710A
Very bright shiny joints
Produces uniform bump shape
Easily washsed of with water
Non-corrosive to underbump metalization
ORL0
ROSIN BASED
TYPE
FEATURES
J-STD-004B
RoHS Compliant
PF200
Rosin mildly activated paste flux made of high grade syntheti resins and rosins, Non-corrosive residues.
Halide <0.05 based on quantative halide test.
REL0
Yes
PF400
Rosin activated paste flux.
Best seller
Halide <0.05 based on quantative halide test.
ROL0
Yes
